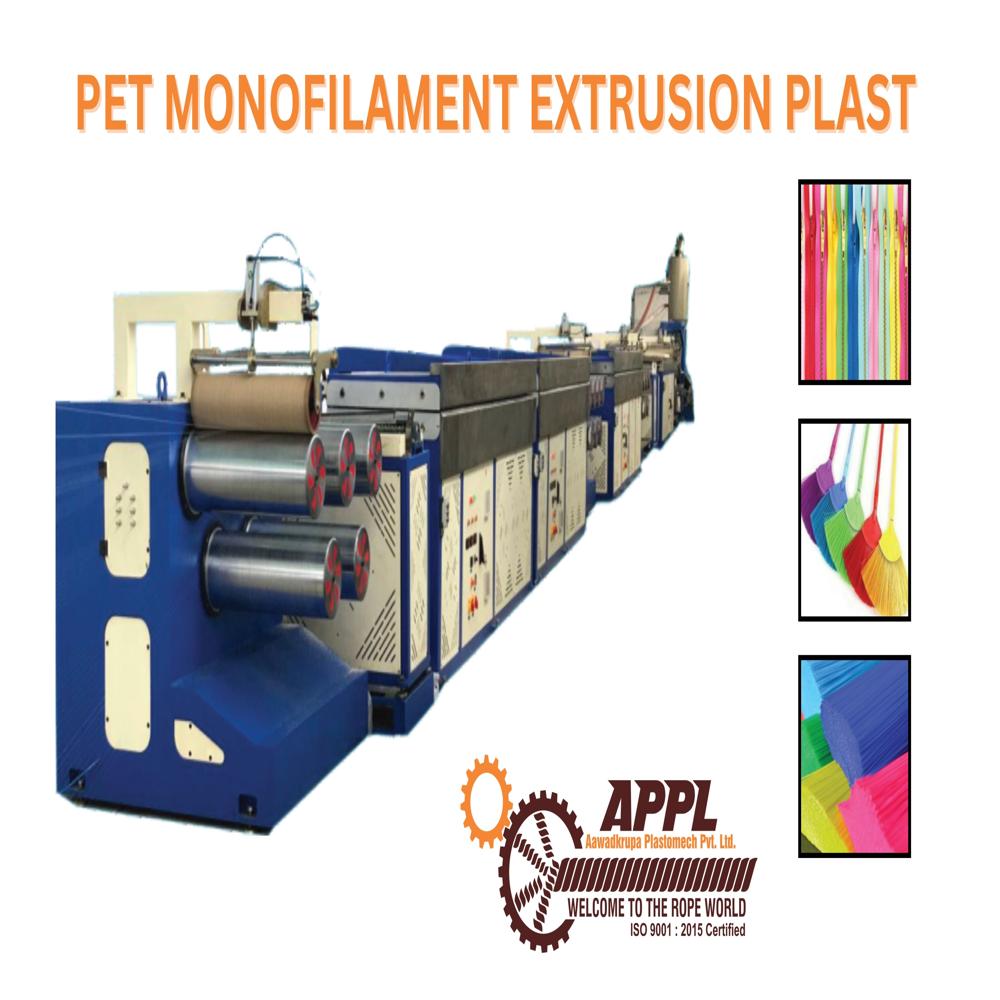

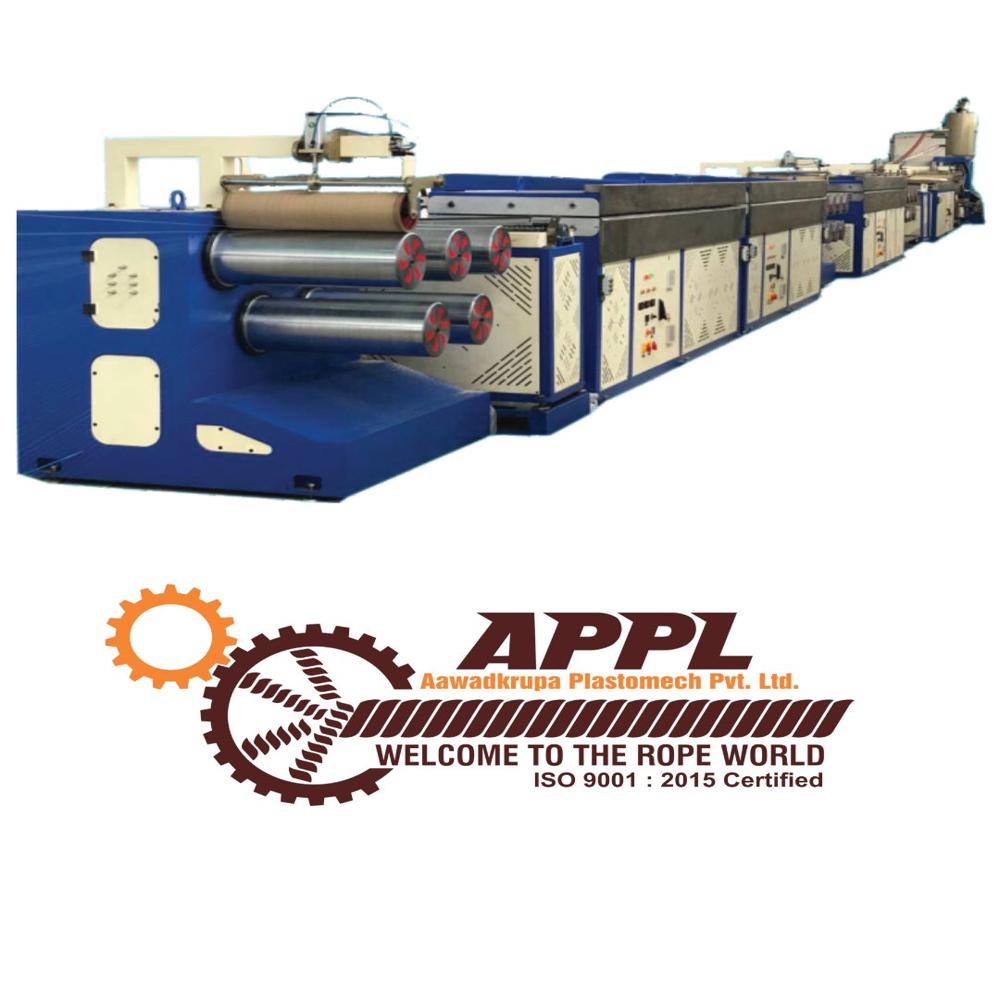

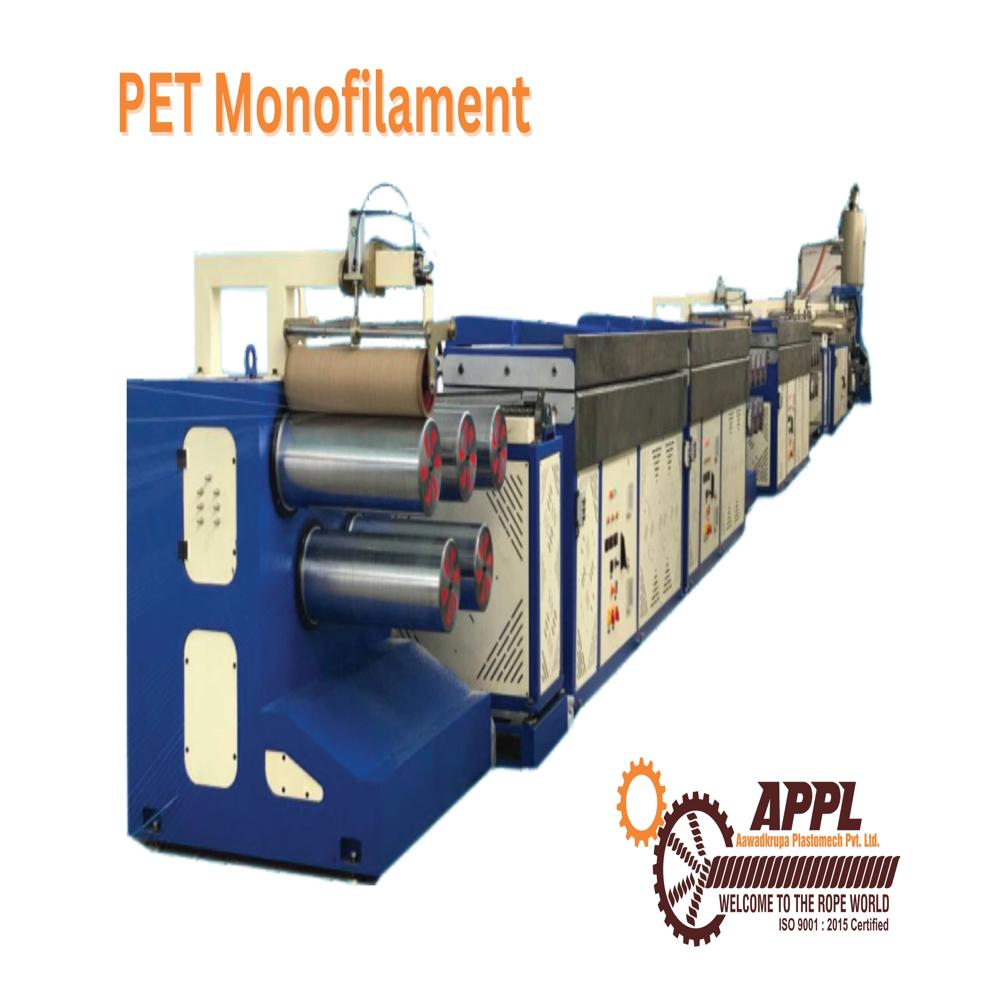

85mm PET Monofilament Extrusion Plant

85mm PET Monofilament Extrusion Plant Specification

Material Processed
Polyethylene Terephthalate (PET)

Voltage
380V / 415V, 3 Phase, 50/60 Hz

Application
Monofilament Yarn, Brush Filaments, Fishing Line, Industrial Filaments

Model
85mm PET Monofilament Extrusion Plant

Die Material
Specially Hardened Alloy Steel

Filament Diameter Range
0.15 mm to 2.5 mm

Installation Area Required
Min. 18 ft x 5 ft

Main Motor Power
45 kW

Line Speed
Up to 120 m/min

Winder
Automatic Precision Winder

Cooling System
Water Cooling Bath with Stainless Steel Construction

Screw Diameter
85 mm

L/D Ratio
30:1

Production Capacity
Up to 120 kg/hr

Control System
PLC Controlled with Touch Screen HMI

Operation Mode
Automatic

Condition
New

Gearbox Type
Helical Gearbox with Global Make Bearings

Barrel Heating
Ceramic/Induction Heater

Take Up Unit
Adjustable Speed with Servo Motor

After-sales Service
Installation & Training Provided

Number of Screws
Single Screw

Blower Capacity
1.5 kW

85mm PET Monofilament Extrusion Plant Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Pipavav Port

Payment Terms
Cash Advance (CA), Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)

Supply Ability
1 Unit Per Month

Delivery Time
1 Months

Sample Available
No

Packaging Details
Shrink & Babble Packing

Main Export Market(s)
Asia, North America, Australia, Central America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001 & CE Certified

About 85mm PET Monofilament Extrusion Plant

Aawadkrupa Plastomech Pvt. Ltd. is a leading manufacturer and exporter of plastic extrusion plants and rope-making machines in India. Established in 1996, the company is powered by a team of young, skilled, and dedicated engineers focused on innovation and quality. In 2000, we started manufacturing monofilament extrusion plants and gradually expanded our expertise to deliver complete turnkey solutions for plastic rope production. Our product range includes advanced ring twister machines, high-speed rope-making machines, and other related equipment designed for durability, efficiency, and long-term performance. With years of industry experience and a strong customer-focused approach, Aawadkrupa Plastomech has earned a reputation for delivering reliable and customized machinery solutions across domestic and international markets. We continuously invest in research and development to keep up with modern production needs and technological advancements. Whether youre starting a new project or upgrading an existing setup, we are your trusted partner in rope manufacturing solutions.

PET MONOFILAMENT

Key Features

Extra Strength & Shining To Filament.

Longer Life of Screw & Barrel.

PET Flakes, Grinding & Granules can Be Process.

PLC based dehumidified air dryer with crystallizing system

Specially designed die head ensuring uniform flow distribution

Unique stabilizing hot air oven design and long chilled water tank

Fully Automatic Screen Changer Wit Auto Back Flushing Technology for Hassle-free use.

More Power Saving in Heater due to Self-Calibration Technology.

User Friendly Touch Screen Display With Separate Desk.

All Parameters And Reading Will Be Shown On Display.

Recipe Based Operating System For Easy Machine Operating.

Timer Based Auto-Start Up and Shut Down Heating System.

Reverse Heating Interlocking System to Avoid Damage Of Machine

Emergency Full Length Foot Switches Parallel To The Godded Length For Both Godded

Safety Guard on Rubber Pressing Roller to Avoid Any Damage.

Energy Calculation For Production And Power Cost On Display Screen.

Speed Control System For More Stretching Accuracy.

Inter Locking Features To Avoid The Damages Of Machine Components.

Shift Wise, Daily, Weekly And Monthly Production Reports.

Machine Lubrication Warning Visible On Display.

AC Drive Fault Alarm Indication On Display.

Wi-Fi or LAN Connectivity.

Remote Monitoring / Remote Maintenance.

Inbuilt Guide For Extruder Settings & Amp;

Inbuilt User Manual In H.

Specially Designed Screw & Barrel for Effective Force Mixing and Melting.

Grinded Gear to Gear Drive for Smooth Operation on filament in Godded.

Extra Features

Pneumatically Operated Transparent Safety Fence Guard For Godded Rollers

Decreased Line Speed During Godded Safety Guard Operation For Easy Yarn Tackling.

Oil Smoothing System for more shining and greasy filament

Advanced Technology and Precision

Featuring a PLC controlled system with a touch screen HMI, the 85mm PET Monofilament Extrusion Plant offers exceptional control over processing parameters. The servo motor-driven take-up unit and automatic precision winder provide reliable, adjustable operation, ensuring uniform filament diameter across various applications. This plant's modern design is suited for continuous, high-quality monofilament production.

Durable Construction and Efficient Cooling

The plant incorporates a specially hardened alloy steel die and stainless steel water cooling bath, extending machine lifespan and guaranteeing consistent quality output. Its helical gearbox with global make bearings minimizes maintenance while boosting durability. Efficient ceramic or induction heating reduces energy consumption and speeds up thermal response.

Wide Application and Flexible Output

Accommodating filament diameters from 0.15 mm to 2.5 mm, this machine meets diverse industry demands such as brush filaments, fishing lines, industrial monofilaments, and yarn. With a production capacity up to 120 kg/hr and automatic operation, it suits exporters, manufacturers, and suppliers aiming for high output with minimal manual intervention.

FAQ's of 85mm PET Monofilament Extrusion Plant:

Q: How does the 85mm PET Monofilament Extrusion Plant ensure consistent filament quality?

A: The plant utilizes a PLC-controlled system with touch screen HMI, adjustable servo motor take-up unit, automatic precision winder, and a water-cooling bath to regulate process parameters accurately. These features ensure uniform diameter and high-quality PET filaments.

Q: What types of products can be manufactured using this extrusion plant?

A: This plant can produce a wide range of PET monofilament products, including yarn, brush filaments, fishing lines, and industrial filaments, covering versatile application requirements across industries.

Q: Where is the best location to install the 85mm PET Monofilament Extrusion Plant?

A: A minimum installation area of 18 ft x 5 ft is required. The plant is suitable for manufacturing environments in industrial units or factories, ensuring safe access to water, electricity, and ventilation.

Q: What is the process flow of monofilament production on this plant?

A: Polyethylene terephthalate (PET) material is fed into the extruder, melted and filtered, then extruded through a specially hardened alloy steel die. The filaments are cooled in a stainless steel water bath, drawn by the servo-controlled take-up unit, and finally wound by the automatic precision winder.

Q: How does water cooling contribute to filament production efficiency?

A: The stainless steel water cooling bath rapidly cools extruded filaments, preventing deformation and ensuring accurate diameter control, which contributes to high production speeds and consistent product quality.

Q: What after-sales services are provided with this machine?

A: Comprehensive installation and training services are included, ensuring that operators can efficiently run and maintain the plant for optimal productivity.

Q: What are the main benefits of using a single screw, 85 mm diameter extrusion plant for PET monofilament?

A: This plant offers reliable operation, high throughput up to 120 kg/hr, flexible filament size range, and automatic features that minimize manual labor while maintaining precise control and consistent quality.
